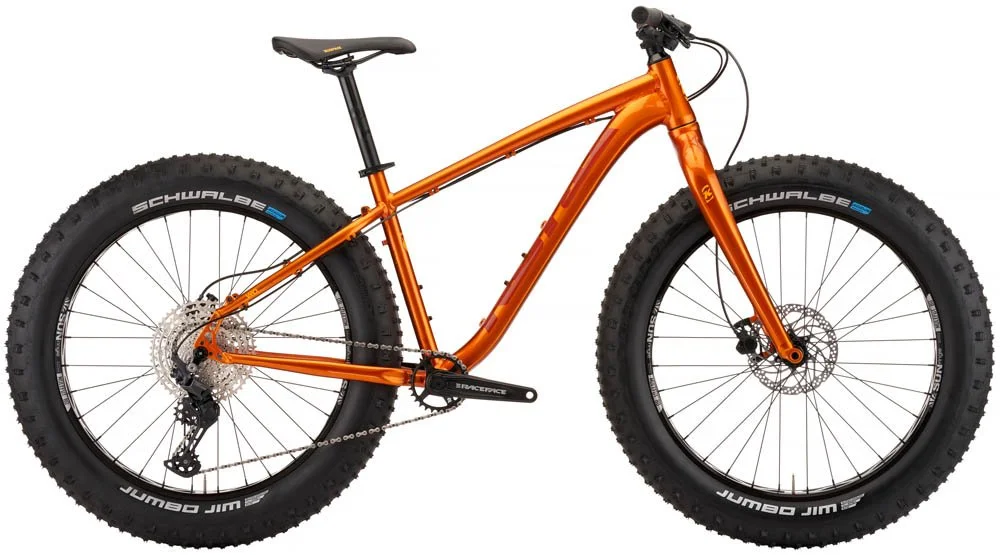

2022 Kona Wo
The Wo has been a staple in our fat bike lineup for a few years now. Its simple, dependable design has made it a favorite for fat bike aficionados everywhere. Running a wide range 11-speed drivetrain, durable cranks, and big ol’ 4.8” tires on tubeless-ready rims, the Wo gets you where you need to go with ease.
The Wo has been a staple in our fat bike lineup for a few years now. Its simple, dependable design has made it a favorite for fat bike aficionados everywhere. Running a wide range 11-speed drivetrain, durable cranks, and big ol’ 4.8” tires on tubeless-ready rims, the Wo gets you where you need to go with ease.
The Wo has been a staple in our fat bike lineup for a few years now. Its simple, dependable design has made it a favorite for fat bike aficionados everywhere. Running a wide range 11-speed drivetrain, durable cranks, and big ol’ 4.8” tires on tubeless-ready rims, the Wo gets you where you need to go with ease.
FRAME MATERIAL Kona Fat 6061 Aluminum Butted
FORK Kona Wo Fat Disc
CRANKARMS Race Face Ride Fat
CHAINRINGS 28t Wide/Narrow
B/B Race Face 100mm
PEDALS n/a
CHAIN KMC X11
CASSETTE Shimano Deore 11-51t 11spd
R/D Shimano Deore 11spd
SHIFTERS Shimano Deore 11spd
BRAKE CALIPERS Shimano MT201 Hydraulic
FRONT BRAKE ROTOR Shimano RT30 180mm (centerlock)
REAR BRAKE ROTOR Shimano RT30 160mm (centerlock)
BRAKE LEVERS Shimano MT201 Hydraulic
HEADSET Feimin FP-H863
HANDLEBAR Kona XC/BC 35
STEM Kona XC/BC 35
SEATPOST Kona XC/BC 31.6mm
SEAT CLAMP Kona QR
GRIPS Kona Key Grip
SADDLE Kona Fat
FRONT HUB KT 150x15mm
REAR HUB KT 197x12mm
SPOKES Stainless Black 14g
RIMS Sun Ringle Mulefut 80 Tubeless Ready
FRONT TIRE Schwalbe Jumbo Jim TR or Vee Tire Snow Avalanche TL Ready 26x4.8"
REAR TIRE Schwalbe Jumbo Jim TR or Vee Tire Snowshoe XL TL Ready 26x4.8"
PAINT COLOR Gloss Metallic Oxy Fire w/ Dark Orange & Orange Decals
